Lambda Variant (C.37) Spike Expression Vectors

Optimized SARS-CoV-2 Spike gene (C.37 - Peruvian origin) for mammalian cell expression

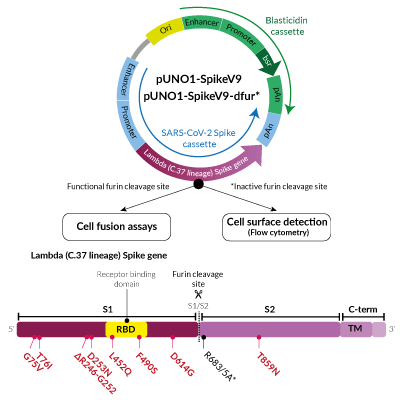

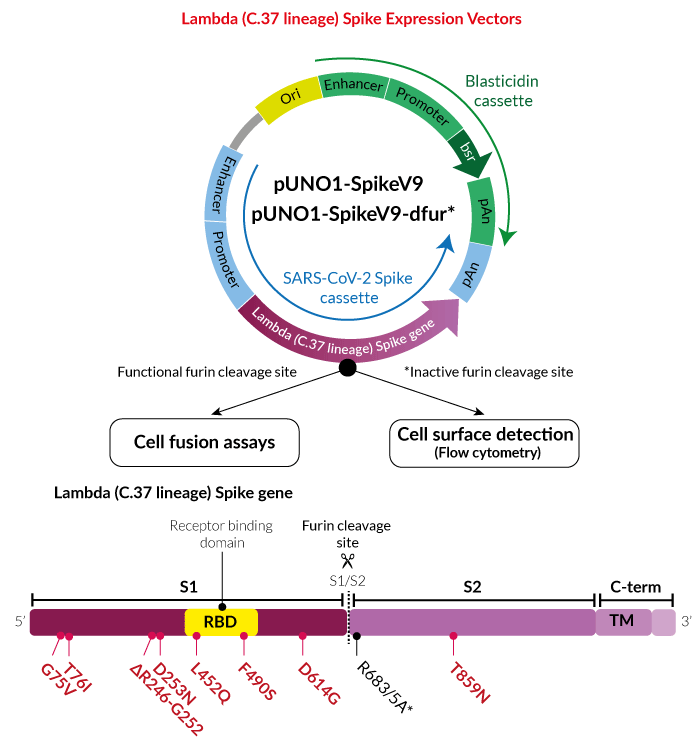

pUNO1-SpikeV9 and pUNO1-SpikeV9-dfur plasmids have been specifically designed for the expression of the SARS-CoV-2 Spike (S) protein in mammalian cells with either a functional or inactivated furin (dfur) cleavage site. These plasmids encode the full-length Spike sequence from the Lambda variant (C.37), and for optimal cellular expression, it is codon-optimized and the C‑terminal ER-retention signal has been removed [1, 2].

Lambda Variant (C.37 lineage) Spike Expression vectors
for cell fusion and flow cytometry assays

Gene Description

These plasmids encode the Spike protein from the SARS-CoV-2 Lambda variant, first reported in Peru. This variant is classified as a member of Clade GR/452Q.V1/ C.37 lineage (Nextstrain/Pango lineage classification). It is characterized by the presence of a number of mutations within the Spike coding region, of which, several are of concern [3].

• S1 domain: G75V, T76I, deletion (Δ)R246-G252, D253N, D614G
• RBD: L452Q, F490S
• S2 domain: T859N

Learn more about SARS-CoV-2 Variants

The Spike protein contains a furin cleavage site that affects its cellular expression [4, in-house data]. Therefore, depending on your application InvivoGen offers:

• pUNO1-SpikeV9: with a functional furin cleavage site and recommended for Spike/ACE2 cell fusion assays
• pUNO1-SpikeV9-dfur: with an inactive furin (dfur) cleavage site for improved surface expression and detection (flow cytometry)

 More details

General Plasmid Description

These plasmids feature a potent mammalian expression cassette composed of the ubiquitous human EF1α-HTLV composite promoter and the SV40 polyadenylation (pAn) signal.  The codon-optimized ORF includes the native SARS-CoV-2 Spike signal sequence. The plasmids are selectable with Blasticidin in both E. coli and mammalian cells (transient and stable transfection).

Applications

• Spike-mediated cell fusion assays with pUNO1-SpikeV9
• Cell surface detection by flow cytometry with pUNO1-SpikeV9-dfur
• Screening of SARS-CoV-2 inhibitors including small molecules, monoclonal antibodies, or convalescent plasma

References:

1. Johnson, M.C. et al. 2020. Optimized Pseudotyping Conditions for the SARS-COV-2 Spike Glycoprotein. J Virol 94.
2. Ou, X. et al. 2020. Characterization of spike glycoprotein of SARS-CoV-2 on virus entry and its immune cross-reactivity with SARS-CoV. Nat Commun 11, 1620.
3. https://www.who.int/en/activities/tracking-SARS-CoV-2-variants/
4. Coutard, B. et al. 2020. The spike glycoprotein of the new coronavirus 2019-nCoV contains a furin-like cleavage site absent in CoV of the same clade. Antiviral Res 176, 104742.

Specifications

pUNO1-SpikeV9

• Origin: Lambda Variant (C.37 lineage) | Peruvian origin
• Sequence Reference:  EPI_ISL_3940379
• Codon Optimized
• ORF size: 3744 bp
• Sequencing primers:
  - Forward HTLV 5’UTR: TGCTTGCTCAACTCTACGTC
  - Reverse SV40 pAn: AACTTGTTTATTGCAGCTT
• Quality Control:
  - Plasmid construct is confirmed by restriction analysis and full‑length open reading frame (ORF) sequencing.
  - After purification by ion-exchange chromatography, predominant supercoiled conformation is verified by electrophoresis.

pUNO1-SpikeV9-dfur

• Origin: Lambda Variant (C.37 lineage) | Peruvian origin
• Sequence Reference: EPI_ISL_3940379
• Codon Optimized and R683/5A mutations
• ORF size: 3744 bp
• Sequencing primers:
  - Forward HTLV 5’UTR: TGCTTGCTCAACTCTACGTC
  - Reverse SV40 pAn: AACTTGTTTATTGCAGCTT
• Quality Control:
  - Plasmid construct is confirmed by restriction analysis and full‑length open reading frame (ORF) sequencing.
  - After purification by ion-exchange chromatography, predominant supercoiled conformation is verified by electrophoresis.

Contents

pUNO1-SpikeV9 and pUNO1-SpikeV9-dfur are provided as follows:

Please note: Each plasmid is sold separately.

• 20 μg of lyophilized DNA
• 2 x 1 ml Blasticidin at 10 mg/ml

 The product is shipped at room temperature.

Lyophilized DNA should be stored at -20 °C.

Resuspended DNA should be stored at -20 °C and is stable for up to 1 year.

Blasticidin is a harmful compound. Refer to the safety data sheet for handling instructions. Store Blasticidin at 4 °C or -20 °C for up to two years. The product is stable for 2 weeks at 37 °C.

Avoid repeated freeze-thaw cycles.

Details

Furin cleavage site in the SARS-CoV-2 Spike protein

A furin cleavage sequence (RRxR) is found within a polybasic cleavage site (681-PRRSR/SVA-688) at the boundary between the S1 and S2 domains (S1/S2) of the Spike protein [1]. Furin is enriched in the Golgi apparatus, where it functions to cleave proteins into their 'mature/active forms'. Specifically, it is suggested that cleavage at this site by furin pre-primes the SARS-CoV-2 S protein during its production. This allows further processing by cell surface host proteases (e.g. TMPRSS2)  upon binding to ACE2, which ultimately facilitates viral-host membrane fusion [2,3].

► In a mammalian expression system (e.g. HEK293 cells), to maximize the surface expression of the S protein, the furin cleavage site in InvivoGen's pUNO1-SpikeV9-dfur has been inactivated (in-house data). The crucial recognition residues have been mutated (R683A and R685A) ensuring that the S protein is not cleaved by furin.

Furthermore, the S protein possesses cell-cell fusogenic activity and has been shown to trigger large syncytia formation (multi-nucleated cells). Notably, overexpression of an uncleavable S protein (mutated/inactivated furin cleavage site) has been shown to not induce cell-cell fusion, suggesting that cleavage at the multibasic site is a requirement for syncytia formation [3].

► To study cell-cell fusion by the SARS-CoV-2 spike, InvivoGen offers the pUNO1-SpikeV9 plasmid.

References:

1. Coutard, B. et al. 2020. The spike glycoprotein of the new coronavirus 2019-nCoV contains a furin-like cleavage site absent in CoV of the same clade. Antiviral Res 176, 104742.
2. Johnson, B.A. et al. 2021. Loss of furin cleavage site attenuates SARS-CoV-2 pathogenesis. Nature
3. Papa, G. et al. 2021. Furin cleavage of SARS-CoV-2 Spike promotes but is not essential for infection and cell-cell fusion. PLoS Pathog 17, e1009246.
