TLR4-based adjuvant - MPLA-SM VacciGrade™

Monophosphoryl Lipid A from Salmonella minnesota R595 - Pre-clinical preparation

Principle of MPLA-SM extraction
(click to enlarge)

MPLA-SM VacciGrade™ is a pre-clinical preparation of Monophosphoryl Lipid A (MPLA) for Toll-like receptor 4 (TLR4) activation and vaccine adjuvantation. It is derived from the lipopolysaccharide (LPS, aka endotoxin) of Salmonella minnesota R595 (Re mutant), a rough strain of Gram-negative bacteria.

MPLA-SM is extracted from LPS using treatment with acid and heat followed by chromatography [1]. This preparation contains a mix of MPLA congeneric forms differing in the number of acyl chains. This congener mix is responsible for the partial TLR4 agonist function of some preparations [2].

MPLA-SM is a potent activator of TLR4 and does not activate TLR2 or other TLRs. All lots of MLPA-SM display the same ability to activate murine TLR4 but some lots are more potent than others at inducing human TLR4 responses (see figures).
Note: MPLA-SM lots that display a higher potency for human TLR4 are denoted with an asterisk (MPLA-SM* VacciGrade™, cat code vac-mpla2).

Application

MPLA-SM is a detoxified derivative of lipid A, the biological active component of LPS. Thus MPLA-SM features the immunostimulatory effects of LPS without the adverse effects of the native endotoxin [3]. MPLA-SM, as well as other detoxified derivatives of lipid A, including synthetic hexa-acylated MPLA and 3-O-desacyl-4’-monophosphoryl lipid A (also known as MPL), are used as adjuvants in vaccination studies. MPL® is a clinical grade vaccine adjuvant that is manufactured exclusively by GlaxoSmithKIine [1].

 More details

VacciGrade™ is a high-quality pre-clinical grade.

MPLA-SM* VacciGrade™​ is for research use only, and not for human or veterinary use.

Key features

• Agonist of mouse and human TLR4
• Enhanced activity towards human TLR4 (for MPLA-SM*)
• Strong inducer of Th1 immune response
• Negligible TLR2 activity
• Each lot is functionally tested


Note: MPLA-SM Vaccigrade™ is also available in a standard grade as MPLA-SM.

References:

1. Wang YQ. et al., 2020. MPL Adjuvant Contains Competitive Antagonists of Human TLR4. Front. Immunol. 11:577823.
2. Kuzmich, NN. et al., 2017. TLR4 Signaling Pathway Modulators as Potential Therapeutics in Inflammation and Sepsis. Vaccines (Basel) 5unol. 165(2):618-22.
3. Sarkar, I. et al., 2019. Selection of adjuvants for vaccines targeting specific pathogens. Expert Rev Vaccines. 18(5):505-521.

Figures

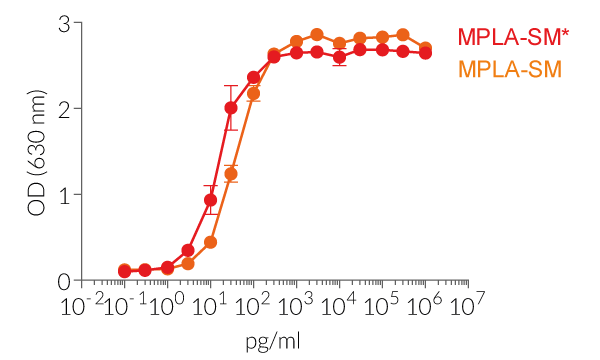

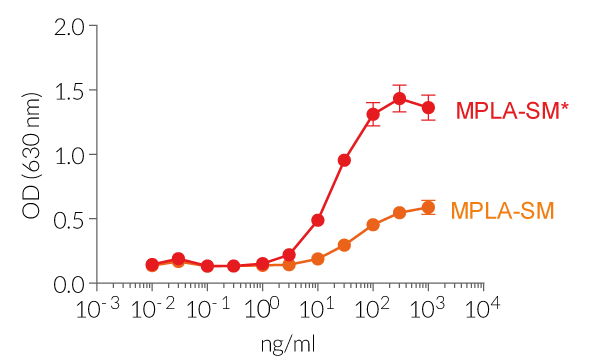

MPLA-SM induces mouse and human TLR4. HEK-Blue™ mTLR4 cells stably expressing mouse TLR4 (A), RAW-Blue™ cells expressing endogenous mouse TLR4 (B), and HEK-Blue™ hTLR4 cells stably expressing human TLR4 (C) were incubated overnight with increasing concentrations of S. minnesota monophosphoryl lipid A, MPLA-SM. The activation of human and mouse TLR4 was assessed by determining the presence of SEAP in the supernatant, using HEK-Blue™ detection medium (A, C) or QUANTI-Blue™ (B). Data are compiled with multiple lots of MPLA-SM and MPLA-SM*. Data are expressed as optical density at 630 nm (±SEM).

Note: MPLA-SM lots that display a higher potency for human TLR4 are denoted with an asterisk (MPLA-SM*, cat code tlrl-mpla2).

MPLA-SM does not trigger a TLR2 response in HEK-Blue™ hTLR2 reporter cells. The cells were incubated with increasing concentrations of S. minnesota monophosphoryl lipid A, MPLA-SM. After overnight incubation in HEK-Blue™ detection medium, a SEAP detection growth medium, the activation of human (h)TLR2 was assessed by determining the presence of SEAP in the supernatant. Data are expressed as optical density at 630 nm (±SEM).

Specifications

Species: Salmonella enterica serovar minnesota mutant R595

Description: TLR4 agonist VacciGrade™

Polarization of adaptive immune response: Th1 response

Working concentration: 2- 20 μg/mouse

Appearance: Clear lipidic film

Solubility: 1 mg/ml in DMSO

Quality control:

• Sterility guaranteed
• Biological activity has been tested using cellular assays.
  Note: MPLA-SM lots that display a higher potency for human TLR4 are denoted with an asterisk (MPLA-SM* VacciGrade™, cat code vac-mpla2).
• The presence of other bacterial components (e.g. lipoproteins) is controlled using HEK-Blue™ TLR2 cells

Contents

MPLA-SM VacciGrade™ is provided as a clear, lyophilized lipidic film.

Note: MPLA-SM lots that display a higher potency for human TLR4 are denoted with an asterisk (MPLA-SM* VacciGrade™, cat code vac-mpla2).

• 1 mg Monophosphoryl Lipid A (MPLA-SM) VacciGrade™
• 10 ml sterile endotoxin-free physiological water (NaCl 0.9%)

 The product is shipped at room temperature.

 Store at -20°C. Upon resuspension, prepare aliquots and store them at -20°C.

 The product is stable for 1 year when properly stored upon receipt, and for 6 months when properly stored upon resuspension.

 Avoid repeated freeze-thaw cycles.

VacciGrade™

VacciGrade™ is a high-quality pre-clinical grade. VacciGrade™ products are filter-sterilized (0.2 µm) and filled under strict aseptic conditions in a clean room*. The absence of bacterial contamination is assessed by a sterility test using a pharmacopeia-derived assay. The level of bacterial contaminants (endotoxins and lipoproteins) in each lot is verified using a LAL assay and/or a TLR2 and TLR4 reporter assay.
*Except for LPS VacciGrade™, which is prepared in a laminar flow hood dedicated to LPS.

Details

Sequential hydrolysis of LPS from Salmonella minnesota
(click to enlarge)

LPS is a potent activator of TLR4, triggering both NF-κB and IRF-mediated production of pro-inflammatory cyokines and interferons [2]. Thus, LPS features many characteristics needed for an effective vaccine adjuvant. However, large uncontrolled amounts of LPS are extremely toxic and can cause devastating diseases [3]. This led to investigations to define, extract, or synthesize the immunologically active portion of LPS with the lowest toxicity, such as MPLA-SM and MPL®.

LPS

Wild-type LPS, referred to as smooth (sLPS) comprises three covalently linked regions: a Lipid A backbone, a core carbohydrate group, and O-polysaccharide chains. Some bacteria, such as  Salmonella minnesota R595, produce a truncated LPS, without O-side chains, referred to as rough (rLPS) [4].

Lipid A

LPS biological activity is mediated by Lipid A recognition by TLR4 and is commensurate to the number of Lipid A fatty acyl chains [3]. Hexa-acylated (6 chains) Lipid A is a highly potent TLR4 agonist, while under‑acylated (4-5 chains) Lipid A induces lower or antagonistic responses [5].

MPLA-SM

The removal of the core carbohydrate group and one phosphate group from the glucosamine disaccharide by acidic treatement of LPS produces MPLA. This derivative displays reduced toxicity while retaining the ability to activate TLR4 [6, 7]. It has been suggested that the reduced toxicity of MPLA is attributed to the preferential triggering of the IRF pathway upon TLR4 activation, resulting in decreased induction of inflammatory cytokines [8]. InvivoGen's MPLA-SM is a research-grade MPLA extracted from LPS of S. minnesota.

MPL

An additional base hydrolysis of MPLA removes one specific fatty acid and generates 3-O-deacylated monophosphoryl lipid A (also known as MPL, 3D-MPL, or 3D-MLA). This deacylation step further decreases the compound residual toxicity. MPL® is a clinical grade vaccine adjuvant that is manufactured exclusively by GlaxoSmithKIine [1].
